Examples of use of netsh.exe Windows command-line utility to manipulate local or remote machine network configuration

List IPv4 and IPv6 addresses

It gives nicer output than ipconfig

netsh interface ip show addresses
netsh interface ipv6 show addresses

Set IPv4 address

netsh interface ip set address "Ethernet" static hostipaddre 255.255.255.0 hostgatewayaddress
netsh interface ip set address "Ethernet" static 10.50.10.41 255.255.255.0 10.50.41.1

Set IPv6 address

Configure interface with ipv6 address, interface name "Local Area Connection"

netsh interface ipv6 set address "Local Area Connection" 2001:db8:acad:1::3

Import wireless profile

Export profile
Netsh wlan export profile folder= PathAndFileName [[name=] ProfileName] 	[[interface=] InterfaceName] [[key=] clear]
Netsh wlan export profile folder=%USERPROFILE%\Downloads\Wifiprofiles name=Guest_wireless interface="Wireless Network Connection"
Import profile
Netsh wlan add profile filename= PathAndFileName [[interface=]InterfaceName] [[user=]{all|current}]
Netsh wlan add profile filename="Wireless Network Connection-Guest_wireless.xml" interface="Wireless Network Connection" user=all

Check wireless card band capability - 2.4Ghz or 5Ghz

OS: Windows 7, not recognized on W2012R2 Data Center

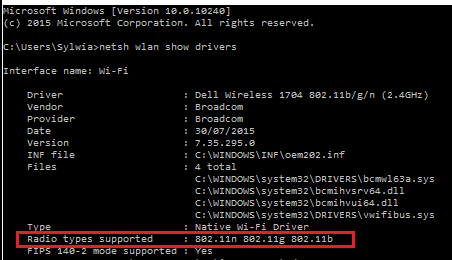

netsh wlan show drivers
Netsh-wlan-bands
  • If the network adapter supports network modes 802.11g and 802.11n:
    • The computer has 2.4 GHz network capability ONLY & IS NOT Dual-Band Capable.
  • If the network adapter supports network modes 802.11a and 802.11g and 802.11ac and 802.11n:
    • The computer has 2.4 GHz and 5GHz network capability IS Dual-Band Compable.
  • The network adapter supports network modes 802.11n and 802.11g and 802.11b:
    • The computer has 2.4GHz network capability ONLY & IS NOT Dual-Band Capable.

Firewall

netsh firewall command has been deprecated in Windows Server 2012 in favour of a new command netsh advfirewall firewall. <syntaxhighlightjs lang=powershell>

  1. Add new rule

netsh advfirewall firewall add rule name="Open port :80" dir=in action=allow protocol=TCP localport=80

  1. Show all rules

netsh advfirewall firewall show rule name=all

  1. Enable/disable firewall

netsh advfirewall set allprofiles state on

  1. Reset a firewall to defaults

netsh advfirewall reset

  1. Change FW default log file from c:\Windows\system32\LogFiles\Firewall\pfirewall.log to c:\temp directory

netsh advfirewall set currentprofile logging filename "C:\temp\pfirewall.log"

  1. Export / import FW settings

netsh advfirewall export "C:\temp\WFconfiguration.wfw" </syntaxhighlightjs>

ICMP rules

<syntaxhighlightjs lang=powershell> netsh advfirewall firewall add rule name="ICMP allow ingress ipv4 echo-requests" protocol=icmpv4:8,any dir=in action=allow #or block netsh advfirewall firewall delete rule name="ICMP allow ingress ipv4 echo-requests" protocol=icmpv4:8,any dir=in netsh firewall set icmpsetting 8 enable #or disable

netsh advfirewall firewall add rule name="All ICMP V4" protocol=icmpv4:any,any dir=in action=allow netsh firewall set icmpsetting type=ALL mode=enable

netsh advfirewall firewall add rule name="Block Type 13 ICMP V4" protocol=icmpv4:13,any dir=in action=block netsh firewall set icmpsetting 13 disable all </syntaxhighlightjs>

Tracing

OS: Windows 7, Windows Server 2008 and newer

netsh trace help
netsh trace show capturefilterhelp  #capture filter examples
netsh trace show status
IPConfig /FlushDNS     #clear DNS name cache
NBTStat -R             #clear NetBIOS name cache
#Capture all traffic using NetConnection scenario, network connection diagnostics
Netsh trace start scenario=NetConnection capture=yes report=yes persistent=no maxsize=2024 correlation=yes traceFile=C:\Logs\NetTrace.etl
netsh trace stop
Capture from a IP interface
netsh trace start scenario=NetConnection capture=yes report=yes persistent=no maxsize=2024 correlation=yes traceFile=C:\Logs\NetTrace.etl Ethernet.Type=IPv4 IPv4.Address=192.168.1.142

 netsh trace start capture=yes Ethernet.Type=IPv4 IPv4.Address=192.168.1.142 traceFile=C:\Logs\NetTrace2.etl

Start Powershell script to capture that only contains traffic between the local system and two remote IP addresses (10.0.2.1 and 10.0.3.1). Note the Local IP address is found using Get-NetIPAddress and looking for a NIC named *Virtual*. Use route print -4 to list interfaces name.

$filename = "c:\logs\${env:computername}_netsh_trace.etl"
 $IPs = "({0},10.0.2.1,10.0.3.1)" -f (Get-NetIPAddress -AddressFamily IPv4 -InterfaceAlias *Virtual*).IPAddress
 netsh trace start capture=yes tracefile=$filename maxsize=2048 filemode=circular overwrite=yes report=no correlation=no IPv4.SourceAddress=$IPs IPv4.DestinationAddress=$IPs Ethernet.Type=IPv4

Analysing

Install Microsoft's Message Analyzer app that can read ETL format http://www.microsoft.com/en-us/download/details.aspx?id=44226

Convert ETL to PCAP using a PowerShell script (not tested) or use save as... in Message Analiser

$s = New-PefTraceSession -Path “C:\output\path\spec\OutFile.Cap” -SaveOnStop
 $s | Add-PefMessageProvider -Provider “C:\input\path\spec\Input.etl”
 $s | Start-PefTraceSession
