VPN - Azure to AWS tunnel

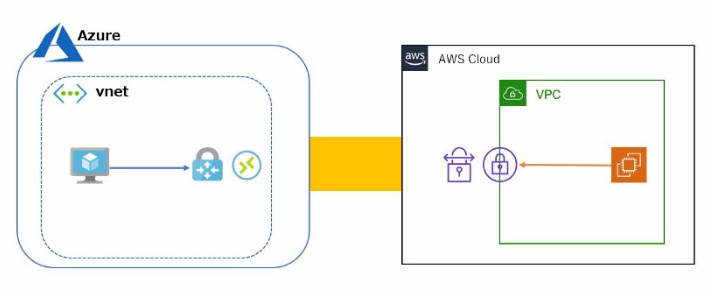

Inter-cloud VPN - Azure to AWS tunnel using managed services

• 2019-02-06 IKEv2 compatible news came in at AWS with Site to Site VPN.
• AWS Site-to-Site VPN Now Supports IKEv2

The point when connecting Azure and AWS was that AWS only supported IKEv1, it became possible to realize two-way connection by supporting IKEv2. However, there are notes BGP can not be used (it may be possible depending on settings).

The procedure

Azure side

1. Create virtual network
2. Create gateway subnet
3. creation of public IP
4. Create virtual network gateway

AWS side

5. creation of VPC
6. Create subnet
7. Create Internet gateway (optional)
8. create the customer gateway statically
9. Creating Virtual Private Gateway
10. create a VPN connection statically
11. download the configuration file

Azure side

12. Create a local network gateway
13. Create connection

AWS side

14. add a virtual private gateway to the routing table option

Azure side

15. Setting up two connections

References

• connect-between-azure-and-aws-with-managed-services
