kubectl

Install

# Latest
ARCH=amd64 # amd64|arm
VERSION=$(curl -s https://storage.googleapis.com/kubernetes-release/release/stable.txt); echo $VERSION
curl -LO https://storage.googleapis.com/kubernetes-release/release/$VERSION/bin/linux/$ARCH/kubectl

# Specific version
VERSION=v1.18.9; ARCH=amd64 # amd64|arm
curl -LO https://storage.googleapis.com/kubernetes-release/release/$VERSION/bin/linux/$ARCH/kubectl
sudo install ./kubectl /usr/local/bin/kubectl

# Note: sudo install := chmod +x ./kubectl; sudo mv

# Verify, kubectl should not be more than -/+ 1 minor version difference then api-server
kubectl version --short
Client Version: v1.21.0
Server Version: v1.18.9
WARNING: version difference between client (1.21) and server (1.18) exceeds the supported minor version skew of +/-1


Google way

# Install kubectl if you don't already have a suitable version
# https://kubernetes.io/docs/setup/release/version-skew-policy/#kubectl
kubectl version --client || gcloud components install kubectl
kubectl get clusterrolebinding $(gcloud config get-value core/account)-cluster-admin ||
  kubectl create clusterrolebinding $(gcloud config get-value core/account)-cluster-admin \
  --clusterrole=cluster-admin \
  --user="$(gcloud config get-value core/account)"

Autocompletion and kubeconfig

source <(kubectl completion bash); alias k=kubectl; complete -F __start_kubectl k

# Set default namespace
kubectl config set-context --current --namespace=dev
kubectl config set-context $(kubectl config current-context) --namespace=dev

vi ~/.kube/config
...
contexts:
- context:
    cluster: kubernetes
    user: kubernetes-admin
    namespace: web       # default namespace
  name: dev-frontend
...

Get resources and cheatsheet

# Get a list of nodes
kubectl get nodes -o jsonpath="{.items[*].metadata.name}"
ip-10-10-10-10.eu-west-1.compute.internal ip-10-10-10-20.eu-west-1.compute.internal

kubectl get nodes -oname
node/ip-10-10-10-10.eu-west-1.compute.internal
node/ip-10-10-10-20.eu-west-1.compute.internal
...

# Pods sorted by node name
kubectl get pods --sort-by=.spec.nodeName -owide -A

# Watch a namespace in a convinient resources order | sts=statefulset, rs=replicaset, ep=endpoint, cm=configmap
watch -d kubectl -n dev get sts,deploy,rc,rs,pods,svc,ep,ing,pvc,cm,sa,secret,es,cronjob,job -owide --show-labels
   # note es - externalsecrets
watch -d 'kubectl get pv -owide --show-labels | grep -e <eg.NAMESPACE>'
watch -d helm list -A

# Test your context by creating configMap
kubectl create configmap my-config --from-literal=key1=config1 --from-literal=key2=config2
kubectl delete configmap my-config

# Watch multiple namespaces
eval 'kubectl --context='{context1,context2}' --namespace='{ns1,ns2}' get pod;'
eval kubectl\ --context={context1,context2}\ --namespace={ns1,ns2}\ get\ pod\;
watch -d eval 'kubectl -n '{default,ingress-nginx}' get sts,deploy,rc,rs,pods,svc,ep,ing,pvc,cm,sa,secret,es,cronjob,job -owide --show-labels;'

# Auth, can-i
kubectl auth can-i delete pods
yes

Get yaml from existing object

kubectl create namespace kiali --dry-run=client -o yaml > ns.yaml
kubectl create namespace kiali --dry-run=client -o yaml | kubectl apply -f -

# Saves version revision in metadata.annotations.kubectl.kubernetes.io/last-applied-configuration={..manifest_json..}
kubectl create ns foo --save-config

# Get a yaml without status information, almost clean manifest. Deprecated '--export' before <v17.x.
kubectl -n web get pod <podName> -oyaml --export


Generate pod manifest, the most clean way I know

# kubectl -n foo run --image=ubuntu:20.04 ubuntu-1 --dry-run=client -oyaml -- bash -c sleep
apiVersion: v1
kind: Pod
metadata:
  creationTimestamp: null  # <- can be deleted
  labels:
    run: ubuntu-1
  name: ubuntu-1
  namespace: foo
spec:
  containers:
  - args:
    - bash
    - -c
    - sleep
    image: ubuntu:20.04
    name: ubuntu-1
    resources: {}  # <- can be deleted
  dnsPolicy: ClusterFirst
  restartPolicy: Always
status: {}         # <- can be deleted

kubectl cp

Each container must be prefixed with a namespace, the copy-to-file(<filename>) must be in place. The recursive copy might be tricky.

kubectl cp [[namespace/]pod:]file/path ./<filename> -c <container_name>
kubectl cp vegeta/vegeta-5847d879d8-p9kqw:plot.html ./plot.html -c vegeta

One liners

Single purpose pods

Note: --generator=deployment/apps.v1 is DEPRECATED and will be removed, use --generator=run-pod/v1 or kubectl create instead.

# Exec to deployment, no need to specify unique pod name
kubectl exec -it deploy/sleep -- curl httpbin:8000/headers

# Echo server
kubectl run --image=k8s.gcr.io/echoserver:1.4 hello-1 --port=8080

# Single purpose pods
kubectl run    --image=appropriate/curl curl-1    --rm -it -- sh
kubectl run    --image=ubuntu:18.04     ubuntu-1  --rm -it -- bash
kubectl create --image=ubuntu:20.04     ubuntu-2  --rm -it -- bash
kubectl run    --image=busybox:1.31.0   busybox-1 --rm -it -- sh          # exec and delete when completed
kubectl run    --image=busybox:1.31.0   busybox-2          -- sleep 7200  # sleep, so you can exec

# Curl
kubectl run test --image=tutum/curl -- sleep 10000

# Deprecation syntax
kubectl run --image=k8s.gcr.io/echoserver:1.4 --generator=run-pod/v1         hello-1 --port=8080 # VALID!
kubectl run --image=k8s.gcr.io/echoserver:1.4 --generator=deployment/apps.v1 hello-1 --port=8080 # <- deprecated

# Errors
# | error: --rm should only be used for attached containers
# | Error: unknown flag: --image # when kubectl create --image


Additional software

# Ubuntu 20.04
export DEBIAN_FRONTEND=noninteractive

# Process and networking
apt install -yq dnsutils iproute2 iputils-ping net-tools netcat procps
# | dnsutils     - nslookup, dig
# | iproute2     - ip addr, ss
# | iputils-ping - ping
# | net-tools    - ifconfig
# | netcat       - nc
# | procps       - ps, top

# Databases
apt install -yq redis-tools
apt install -yq postgresql-client

# AWS cli v1 - Debian
apt install python-pip
pip install awscli


kubectl heredocs
kubectl apply -f <(cat <<EOF
EOF
) --dry-run=server


One lines move to yamls
# kubectl exec -it ubuntu-2 -- bash
kubectl apply -f <(cat <<EOF
apiVersion: v1
kind: Pod
metadata:
# namespace: default
  name: ubuntu-1
# annotations:
#   kubernetes.io/psp: eks.privileged
# labels:
#   app: ubuntu
spec:
  containers:
  - command:
    - "sleep"
    - "7200"
#   args:
#   - "bash"
    image: ubuntu:20.04
    imagePullPolicy: IfNotPresent
    name: ubuntu-1
#   securityContext:
#     privileged: true
#   tty: true
# dnsPolicy: ClusterFirst
# enableServiceLinks: true
  restartPolicy: Never
# serviceAccount    : sa1
# serviceAccountName: sa1
# nodeSelector:
#   node.kubernetes.io/lifecycle: spot
EOF
) --dry-run=server

Docker - for a single missing commands

If you ever miss some commands you can use docker container package with it:

# curl - missing on minikube node that runs CoreOS
minikube -p metrics ip; minikube ssh
docker run appropriate/curl -- http://<NodeIP>:10255/stats/summary # check kubelet-metrics non secure endpoint

kubectl diff

Shows the differences between the current live object and the new dry-run object.

kubectl diff -f webfront-deploy.yaml
diff -u -N /tmp/LIVE-761963756/apps.v1.Deployment.default.webfront-deploy /tmp/MERGED-431884635/apps.v1.Deployment.default.webfront-deploy
--- /tmp/LIVE-761963756/apps.v1.Deployment.default.webfront-deploy      2019-10-13 17:46:59.784000000 +0000
+++ /tmp/MERGED-431884635/apps.v1.Deployment.default.webfront-deploy    2019-10-13 17:46:59.788000000 +0000
@@ -4,7 +4,7 @@
   annotations:
     deployment.kubernetes.io/revision: "1"
   creationTimestamp: "2019-10-13T16:38:43Z"
-  generation: 2
+  generation: 3
   labels:
     app: webfront-deploy
   name: webfront-deploy
@@ -14,7 +14,7 @@
   uid: ebaf757e-edd7-11e9-8060-0a2fb3cdd79a
 spec:
   progressDeadlineSeconds: 600
-  replicas: 2
+  replicas: 1
   revisionHistoryLimit: 10
   selector:
     matchLabels:
@@ -29,6 +29,7 @@
       creationTimestamp: null
       labels:
         app: webfront-deploy
+        role: webfront
     spec:
       containers:
       - image: nginx:1.7.8
exit status 1


Kubectl-plugins - Krew plugin manager

Install krew package manager for kubectl plugins, requires K8s v1.12+

(
  set -x; cd "$(mktemp -d)" &&
  curl -fsSLO "https://github.com/kubernetes-sigs/krew/releases/latest/download/krew.{tar.gz,yaml}" &&
  tar zxvf krew.tar.gz &&
  KREW=./krew-"$(uname | tr '[:upper:]' '[:lower:]')_amd64" &&
  "$KREW" install --manifest=krew.yaml --archive=krew.tar.gz &&
  "$KREW" update
)
# update PATH
[ -d ${HOME}/.krew/bin ] && export PATH="${PATH}:${HOME}/.krew/bin"

# List plugins
kubectl krew search

# Install plugins
kubectl krew install sniff

# Upgrade plugins
kubectl krew upgrade


Install kubectl plugins

kubectl ctx and kubectl ns - change context and set default namespace

kubectl krew install ctx ns


kubectl cssh - SSH into Kubernetes nodes

# Ssh to all nodes, example below for EKS v1.15.11
kubectl cssh -u ec2-user -i /git/secrets/ssh/dev.pem -a "InternalIP"

kubectl deprecations

kubectl deprecations
shows all the deprecated objects in a Kubernetes cluster allowing the operator to verify them before upgrading the cluster. It uses the swagger.json version available in master branch of Kubernetes repository (https://github.com/kubernetes/kubernetes/tree/master/api/openapi-spec) as a reference.
kubectl deprecations
StatefulSet found in statefulsets.apps/v1beta1
	 ├─ API REMOVED FROM THE CURRENT VERSION AND SHOULD BE MIGRATED IMMEDIATELY!!
		-> OBJECT: myapp namespace: mynamespace1


Prior upgrade report. Script specific to EKS.

#!/bin/bash
[[ $# -eq 0 ]] && echo "no args, provide prefix for the file name" && exit 1
PREFIX=$1
TARGET_K8S_VER=v1.16.8
K8Sid=$(kubectl cluster-info | head -1 | cut -d'/' -f3 | cut -d'.' -f1)
kubectl deprecations --k8s-version $TARGET_K8S_VER > $PREFIX-$(kubectl cluster-info | head -1 | cut -d'/' -f3 | cut -d'.' -f1)-$(date +"%Y%m%d-%H%M")-from-$(kubectl version --short | grep Server | cut -f3 -d' ')-to-${TARGET_K8S_VER}.yaml
$ ./kube-deprecations.sh test
$ ls -l
-rw-rw-r-- 1 vagrant vagrant 29356 Jun 29 16:09 test-11111111112222222222333333333344-20200629-1609-from-v1.15.11-eks-af3caf-to-latest.yaml
-rw-rw-r-- 1 vagrant vagrant   852 Jun 30 22:41 test-11111111112222222222333333333344-20200630-2241-from-v1.15.11-eks-af3caf-to-v1.16.8.yaml
-rwxrwxr-x 1 vagrant vagrant   437 Jun 30 22:41 kube-deprecations.sh

kubectl df-pv

kubectl df-pv
Show disk usage (like unix df) for persistent volumes
kubectl df-pv
PVC                   NAMESPACE   POD                    SIZE          USED        AVAILABLE     PERCENTUSED   IUSED   IFREE     PERCENTIUSED
rdbms-volume          shared1     rdbms-d494fbf4-xrssk   2046640128    252817408   1777045504    12.35         688     130384    0.52
userdata-0            shared2     mft-0                  21003583488   57692160    20929114112   0.27          749     1309971   0.06

kubectl sniff

Start a remote packet capture on pods using tcpdump.

kubectl sniff hello-minikube-7c77b68cff-qbvsd -c hello-minikube
# Flags:
#   -c, --container string             container (optional)
#   -x, --context string               kubectl context to work on (optional)
#   -f, --filter string                tcpdump filter (optional)
#   -h, --help                         help for sniff
#       --image string                 the privileged container image (optional)
#   -i, --interface string             pod interface to packet capture (optional) (default "any")
#   -l, --local-tcpdump-path string    local static tcpdump binary path (optional)
#   -n, --namespace string             namespace (optional) (default "default")
#   -o, --output-file string           output file path, tcpdump output will be redirect to this file instead of wireshark (optional) ('-' stdout)
#   -p, --privileged                   if specified, ksniff will deploy another pod that have privileges to attach target pod network namespace
#   -r, --remote-tcpdump-path string   remote static tcpdump binary path (optional) (default "/tmp/static-tcpdump")
#   -v, --verbose                      if specified, ksniff output will include debug information (optional)


The command above will open Wireshark, interesting article to follow:

kubectl neat

Print sanitized Kubernetes manifest.

kubectl get csec  dummy-secret -n clustersecret -oyaml | kubectl neat
apiVersion: clustersecret.io/v1
data:
  tls.crt: ***
  tls.key: ***
kind: ClusterSecret
matchNamespace:
- anothernamespace
metadata:
  name: dummy-secret
  namespace: clustersecret

Getting help like manpages kubectl explain

$ kubectl --help
$ kubectl get --help
$ kubectl explain --help
$ kubectl explain pod.spec.containers # kubectl knows cluster version, so gives you correct schema details
$ kubectl explain pods.spec.tolerations --recursive # show only fields
(...)
FIELDS:
   effect	<string>
   key	<string>
   operator	<string>
   tolerationSeconds	<integer>
   value	<string>

Watch Containers logs

Stern

Note: https://github.com/wercker/stern repository has no activity ISSUE-140, the new community maintain repo is stern/stern


Log tailing and landscape viewing tool. It connects to kubeapi and streams logs from all pods. Thus using this external tool with clusters that have 100ts of containers can be put significant load on kubeapi.


It will re-use kubectl config file to connect to your clusters, so works oob.


Install
# Govendor - this module manager is required
export GOPATH=$HOME/go        # path where go modules can be found, used by 'go get -u <url>'
export PATH=$PATH:$GOPATH/bin # path to the additional 'go' binaries
go get -u github.com/kardianos/govendor  # there will be no output

# Stern (official)
mkdir -p $GOPATH/src/github.com/stern # new link: https://github.com/stern/stern
cd $GOPATH/src/github.com/stern
git clone https://github.com/stern/stern.git && cd stern
govendor sync # there will be no output, may take 2 min
go install    # no output

# Stern latest, download binary, no need for govendor
REPO=stern/stern
LATEST=$(curl --silent "https://api.github.com/repos/$REPO/releases/latest" | jq -r .tag_name | tr -d v); echo $LATEST
TEMPDIR=$(mktemp -d); FILE=stern_${LATEST}_linux_amd64
curl -L https://github.com/$REPO/releases/download/v${LATEST}/$FILE.tar.gz -o $TEMPDIR/$FILE.tar.gz
sudo tar xzvf $TEMPDIR/$FILE.tar.gz --strip-components=1 -C /usr/local/bin/ $FILE/stern


Usage
# Regex filter (pod-query) to match 2 pods patterns 'proxy' and 'gateway'
stern -n dev --kubeconfig ~/.kube/dev-config \(proxy\|gateway\)  # escape to protect regex mod characters
stern -n dev --kubeconfig ~/.kube/dev-config '(proxy|gateway)'   # single-quote to protect mod characters

# Template the output
stern --template '{{.Message}} ({{.NodeName}}/{{.Namespace}}/{{.PodName}}/{{.ContainerName}}){{"\n"}}' .


Help
$ stern
Tail multiple pods and containers from Kubernetes

Usage:
  stern pod-query [flags]

Flags:
  -A, --all-namespaces             If present, tail across all namespaces. A specific namespace is ignored even if specified with --namespace.
      --color string               Color output. Can be 'always', 'never', or 'auto' (default "auto")
      --completion string          Outputs stern command-line completion code for the specified shell. Can be 'bash' or 'zsh'
  -c, --container string           Container name when multiple containers in pod (default ".*")
      --container-state string     If present, tail containers with status in running, waiting or terminated. Default to running. (default "running")
      --context string             Kubernetes context to use. Default to current context configured in kubeconfig.
  -e, --exclude strings            Regex of log lines to exclude
  -E, --exclude-container string   Exclude a Container name
  -h, --help                       help for stern
  -i, --include strings            Regex of log lines to include
      --init-containers            Include or exclude init containers (default true)
      --kubeconfig string          Path to kubeconfig file to use
  -n, --namespace string           Kubernetes namespace to use. Default to namespace configured in Kubernetes context.
  -o, --output string              Specify predefined template. Currently support: [default, raw, json] (default "default")
  -l, --selector string            Selector (label query) to filter on. If present, default to ".*" for the pod-query.
  -s, --since duration             Return logs newer than a relative duration like 5s, 2m, or 3h. Defaults to 48h.
      --tail int                   The number of lines from the end of the logs to show. Defaults to -1, showing all logs. (default -1)
      --template string            Template to use for log lines, leave empty to use --output flag
  -t, --timestamps                 Print timestamps
  -v, --version                    Print the version and exit


Usage
stern <pod>
stern --tail 1 busybox -n <namespace> #this is RegEx that matches busybox1|2|etc

kubetail

Bash script that enables you to aggregate (tail/follow) logs from multiple pods into one stream. This is the same as running kubectl logs -f but for multiple pods.

Lens | the Kubernetes IDE

Kubernetes client, this is not a dashboard that needs installing on a cluster. Similar to KUI but much more powerful.

snap list
sudo snap install kontena-lens --classic # U16.04+, tested on U20.04

# Install from a .snap file
mkdir -p ~/Downloads/kontena-lens && cd $_
snap download kontena-lens
sudo snap ack     kontena-lens_152.assert # add an assertion to the system assertion database
sudo snap install kontena-lens_152.snap --classic

# Info
$ snap info kontena-lens_152.assert
name:      kontena-lens
summary:   Lens - The Kubernetes IDE
publisher: Mirantis Inc (jakolehm)
store-url: https://snapcraft.io/kontena-lens
contact:   info@k8slens.dev
license:   Proprietary
description: |
  Lens is the most powerful IDE for people who need to deal with Kubernetes clusters on a daily
  basis. Ensure your clusters are properly setup and configured. Enjoy increased visibility, real
  time statistics, log streams and hands-on troubleshooting capabilities. With Lens, you can work
  with your clusters more easily and fast, radically improving productivity and the speed of
  business.
snap-id: Dek6y5mTEPxhySFKPB4Z0WVi5EPS9osS
channels:
  latest/stable:    4.0.7      2021-01-20 (152) 107MB classic
  latest/candidate: 4.0.7      2021-01-20 (152) 107MB classic
  latest/beta:      4.0.7      2021-01-20 (152) 107MB classic
  latest/edge:      4.1.0-rc.1 2021-02-11 (157) 108MB classic

$ snap info kontena-lens_152.snap
path:       "kontena-lens_152.snap"
name:       kontena-lens
summary:    Lens
version:    4.0.7 classic
build-date: 24 days ago, at 16:31 GMT
license:    unset
description: |
  Lens - The Kubernetes IDE
commands:
  - kontena-lens

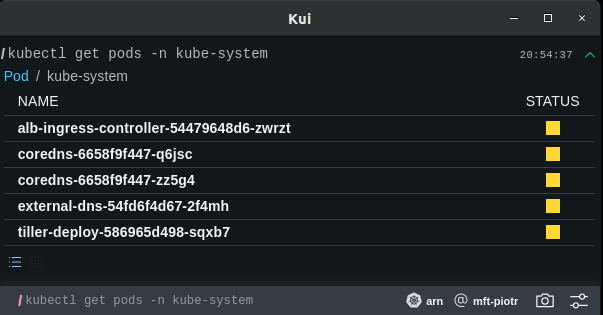

kui terminal

kui is a terminal with visualizations, provided by IBM

Install using continent install script into /opt/Kui-linux-x64/ and symlink Kui binary to /usr/local/bin/kui

$ curl -sL https://raw.githubusercontent.com/IBM/kui/master/tools/install.sh | sh

|----- Kui, the hybrid command-line/GUI Kubernetes tool -----|
Some commands need "sudo", so your pass could be asked
Linux detected
Installing in "/opt"
Linking "/usr/local/bin/kui"
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed
100 74.4M  100 74.4M    0     0  1558k      0  0:00:48  0:00:48 --:--:-- 1828k
Archive:  kui.zip
   creating: Kui-linux-x64/
  inflating: Kui-linux-x64/kubectl-kui
  inflating: Kui-linux-x64/chrome_200_percent.pak
...
[sudo] password for piotr: ***
|----- Type "kui" to start! -----|

# Run
$> kui


Install from zip

LATEST=$(curl --silent "https://api.github.com/repos/IBM/kui/releases/latest" | jq -r .tag_name)
curl -LO https://github.com/IBM/kui/releases/download/${LATEST}/Kui-linux-x64.zip # option 1
wget     https://github.com/IBM/kui/releases/download/${LATEST}/Kui-linux-x64.zip # option 2
# TODO:
# unzip Kui-linux-x64.zip /opt
# ln -s /opt/Kui-linux-x64/Kui /usr/local/bin/kui


Run Kui as [Kubernetes plugin https://kubernetes.io/docs/tasks/extend-kubectl/kubectl-plugins/]

export PATH=$PATH:/opt/Kui-linux-x64/ # make sure Kui libs are in environment PATH
kubectl kui get pods -A               # -> a pop up window will show up

$ kubectl plugin list
The following compatible plugins are available:
/opt/Kui-linux-x64/kubectl-kui
Resources

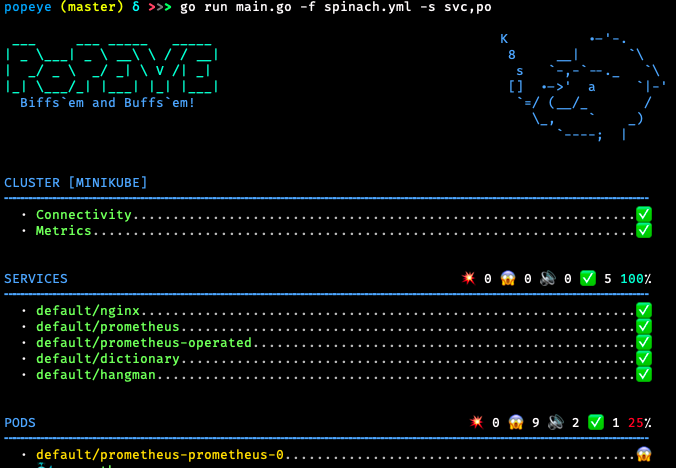

popeye

Popeye is a utility that scans live Kubernetes cluster and reports potential issues with deployed resources and configurations.

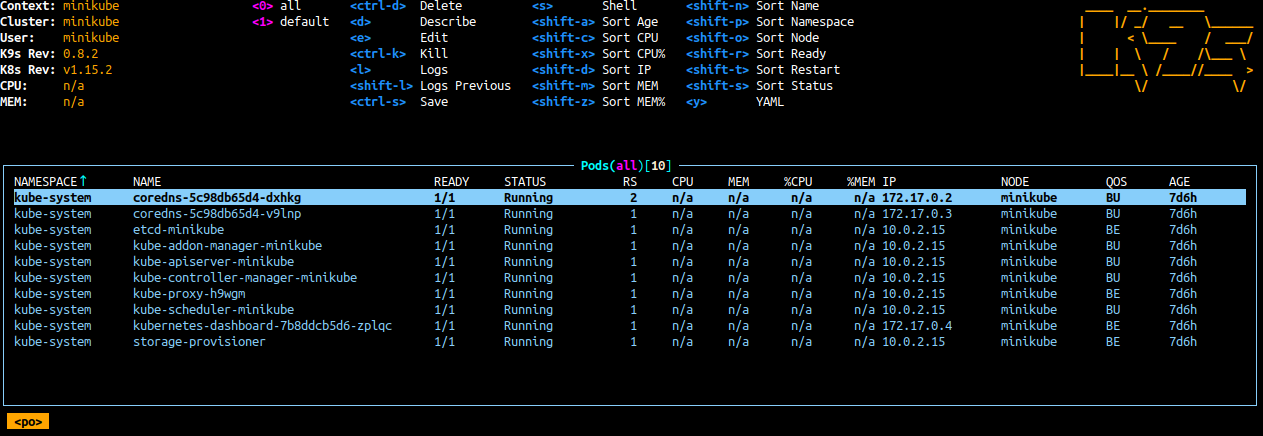

k9s

K9s provides a terminal UI to interact with Kubernetes clusters.

Install
LATEST=$(curl --silent "https://api.github.com/repos/derailed/k9s/releases/latest" | jq -r .tag_name); echo $LATEST
wget https://github.com/derailed/k9s/releases/download/$LATEST/k9s_Linux_x86_64.tar.gz
tar xf k9s_Linux_x86_64.tar.gz --remove-files k9s
sudo install k9s /usr/local/bin
Usage
  • ? help
  • :ns select namespace
  • :nodes show nodes



kubecolor

Kubecolor is a bash function that colorizes the output of kubectl get events -w.

# This script is not working
git clone https://github.com/droctothorpe/kubecolor.git ~/.kubecolor
echo "source ~/.kubecolor/kubecolor.bash" >> ~/.bash_profile # (or ~/.bashrc)
source ~/.bash_profile # (or ~/.bashrc)

# You can source this function instead

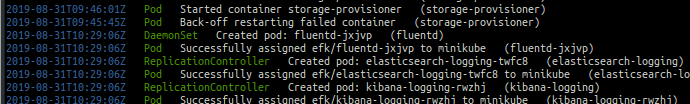

kube-events() {
    kubectl get events --all-namespaces --watch \
    -o 'go-template={{.lastTimestamp}} ^ {{.involvedObject.kind}} ^ {{.message}} ^ ({{.involvedObject.name}}){{"\n"}}' \
    | awk -F^ \
    -v   black=$(tput setaf 0) \
    -v     red=$(tput setaf 1) \
    -v   green=$(tput setaf 2) \
    -v  yellow=$(tput setaf 3) \
    -v    blue=$(tput setaf 4) \
    -v magenta=$(tput setaf 5) \
    -v    cyan=$(tput setaf 6) \
    -v   white=$(tput setaf 7) \
    '{ $1=blue $1; $2=green $2; $3=white $3; }  1'
}

# Usage
kube-events
kubectl get events -A -w
kubectl get events --all-namespaces --watch -o 'go-template={{.lastTimestamp}} {{.involvedObject.kind}} {{.message}} ({{.involvedObject.name}}){{"\n"}}'

Kubernetes online yaml validator

argo-rollouts

Argo Rollouts introduces a new custom resource called a Rollout to provide additional deployment strategies such as Blue Green and Canary to Kubernetes.

Kubernetes scripts

These Scripts allow you to troubleshoot and check the health status of the cluster and deployments They allow you to gather these information

  • Cluster resources
  • Cluster Nodes status
  • Nodes Conditions
  • Pods per Nodes
  • Worker Nodes Per Availability Zones
  • Cluster Node Types
  • Pods not in running or completed status
  • Top Pods according to Memory Limits
  • Top Pods according to CPU Limits
  • Number of Pods
  • Pods Status
  • Max Pods restart count
  • Readiness of Pods
  • Pods Average Utilization
  • Top Pods according to CPU Utilization
  • Top Pods according to Memory Utilization
  • Pods Distribution per Nodes
  • Node Distribution per Availability Zone
  • Deployments without correct resources (Memory or CPU)
  • Deployments without Limits
  • Deployments without Application configured in Labels

Multi-node clusters

Note: Kubernetes/minikube can do this natively


Build multi node cluster for development. On a single machine

  • kube-spawn tool for creating a multi-node Kubernetes (>= 1.8) cluster on a single Linux machine
  • kubernetes-dind-cluster Kubernetes multi-node cluster for developer of Kubernetes that launches in 36 seconds
  • kind is a tool for running local Kubernetes clusters using Docker container “nodes”
  • Vagrant full documentation in thsi article


Full cluster provisioning

  • kubespray Deploy a Production Ready Kubernetes Cluster
  • kops get a production grade Kubernetes cluster up and running

crictl

CLI and validation tools for Kubelet Container Runtime Interface (CRI). Used for debugging Kubernetes nodes with crictl. crictl requires a Linux operating system with a CRI runtime. Creating containers with this tool on K8s cluster, will eventually cause that Kubernetes will delete these containers.

kubediff show diff code vs what is deployed

Kubediff is a tool for Kubernetes to show you the differences between your running configuration and your version controlled configuration.

Secrets manages that work with Kubernetes

  • SOAPS Mozilla SOPS: Secrets OPerationS, sops is an editor of encrypted files that supports YAML, JSON, ENV, INI and BINARY formats and encrypts with AWS KMS, GCP KMS, Azure Key Vault and PGP

Kompose (Kubernetes + Compose)

kompose is a tool to convert docker-compose files to Kubernetes manifests. kompose takes a Docker Compose file and translates it into Kubernetes resources.

# Linux
curl -L https://github.com/kubernetes/kompose/releases/download/v1.21.0/kompose-linux-amd64 -o kompose
sudo install ./kompose /usr/local/bin/kompose               # option 1
chmod +x kompose; sudo mv ./kompose /usr/local/bin/kompose  # option 2

# Completion
source <(kompose completion bash)

# Convert
kompose convert -f docker-compose-mac.yaml

WARN Restart policy 'unless-stopped' in service mysql is not supported, convert it to 'always'
INFO Kubernetes file "mysql-service.yaml" created
INFO Kubernetes file "cluster-dir-persistentvolumeclaim.yaml" created
INFO Kubernetes file "mysql-deployment.yaml" created
References

kube-iptables-tailer - ip-table drop packages logger

Allows to view iptables dropped packages, useful when working with Network Policies to identify pods trying to talk to disallowed destinations.


This project deploys kube-iptables-tailer daemonset that watches iptables log /var/log/iptables.log on each k8s-node mounted as hostPath volume. It filters the log for custom prefix, set in daemonset.spec.template.spec.containers.env and sends to cluster events.

env:
              - name: "IPTABLES_LOG_PATH"
                value: "/var/log/iptables.log"
              - name: "IPTABLES_LOG_PREFIX"
                # log prefix defined in your iptables chains
                value: "my-prefix:"


Set iptables Log Prefix

$ iptables -A CHAIN_NAME -j LOG --log-prefix "EXAMPLE_LOG_PREFIX: "


Example output, when packet dropped

$ kubectl describe pods --namespace=YOUR_NAMESPACE
...
Events:
  FirstSeen   LastSeen    Count   From                    Type          Reason          Message
  ---------   --------	  -----	  ----                    ----          ------          -------
  1h          5s          10      kube-iptables-tailer    Warning       PacketDrop      Packet dropped when receiving traffic from example-service-2 (IP: 22.222.22.222).
  3h          2m          5       kube-iptables-tailer    Warning       PacketDrop      Packet dropped when sending traffic to example-service-1 (IP: 11.111.11.111).

ksniff - pipe a pod traffic to Wireshark or Tshark

A kubectl plugin that utilize tcpdump and Wireshark to start a remote capture on any pod

flagger - canary deployments

Flagger is a Kubernetes operator that automates the promotion of canary deployments using Istio, Linkerd, App Mesh, NGINX, Skipper, Contour or Gloo routing for traffic shifting and Prometheus metrics for canary analysis.

Kubeval

Kubeval is used to validate one or more Kubernetes configuration files, and is often used locally as part of a development workflow as well as in CI pipelines.

$ kubeval my-invalid-rc.yaml
WARN - my-invalid-rc.yaml contains an invalid ReplicationController - spec.replicas: Invalid type. Expected: integer, given: string
$ echo $?
1

Observability

KUR8 - like Elastic.io EFK dashboards

Note: I've deployed v1.0.0 to monitoring ns along with already existing service kube-prometheus-stack-prometheus:9090 but the application was crashing

CPU Load pods

# Repeat the command times x CPU
cat /proc/cpuinfo | grep processor | wc -l # count processors
yes > /dev/null &

References

Cheatsheets

Other projects

  • kube-tmux Kubernetes context and namespace status for tmux
  • kube-ps1 Kubernetes prompt for bash and zsh
