Flux v2

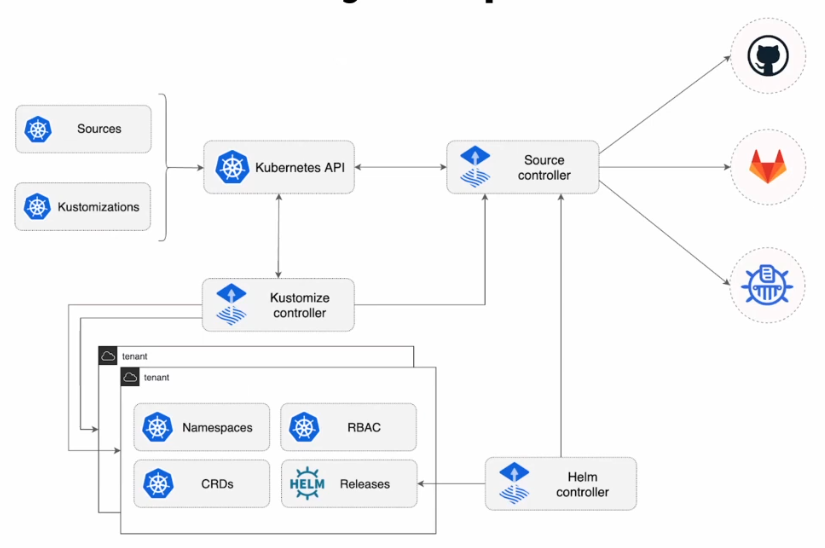

Flux v2 architecture

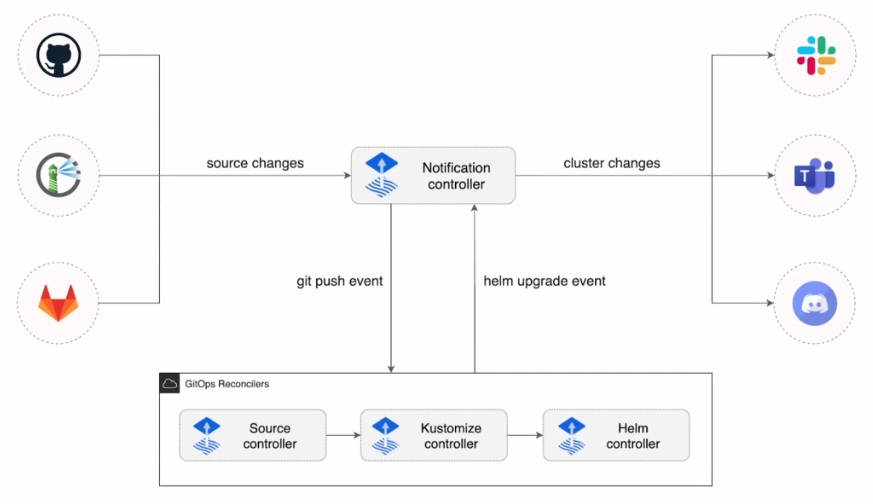

Flux v2 - Webhooks and notifications



Install Flux v2 flux command line

Note: fluxctl is a previous version Flux v1 command line tool.

# Install or upgrade using official install.sh (option-1)
export FLUX_VERSION=0.37.0; curl -s https://fluxcd.io/install.sh | sudo -E bash
curl -s https://fluxcd.io/install.sh | sudo bash # latest

# Install from GitHub releases (option-2)
LATEST=$(curl --silent "https://api.github.com/repos/$REPO/releases/latest" | jq -r .tag_name | tr -d v); echo $LATEST
TEMPDIR=$(mktemp -d); FILE=flux_${VERSION}_linux_amd64
curl -L https://github.com/$REPO/releases/download/v${VERSION}/$FILE.tar.gz -o $TEMPDIR/$FILE.tar.gz
tar xzvf $TEMPDIR/$FILE.tar.gz -C $TEMPDIR
sudo install $TEMPDIR/flux /usr/local/bin/flux
sudo install $TEMPDIR/flux /usr/local/bin/flux_${VERSION}

# enable completions in ~/.bash_profile
. <(flux completion bash)

# TODO: Via release binaries
# https://github.com/fluxcd/flux/releases

# Pre check
flux check --pre
► checking prerequisites
✗ flux 0.25.1 <0.25.2 (new version is available, please upgrade)
✔ Kubernetes 1.21.5-gke.1302 >=1.19.0-0
✔ prerequisites checks passed

# Docker images
docker pull fluxcd/fluxctl:1.24.3
docker pull ghcr.io/fluxcd/flux-cli:1.24.3 # does not work

Cluster bootstrap

FluxCDv2 bootstrap process is installing the Flux onto a cluster and stores(commits) its own manifests to a Git repository.

flux bootstrap git \
  --author-email=$FLUX_GIT_EMAIL \
  --url=ssh://git@github.com/$FLUX_GIT_USERNAME/gitops-istio \
  --branch=main \

At bootstrap, Flux generates an SSH key and prints the public key. In order to sync your cluster state with git you need to copy the public key and create a deploy key with write access on your GitHub repository. On GitHub go to Settings > Deploy keys click on Add deploy key, check Allow write access, paste the Flux public key and click Add key.

Dev installation does not stores its own configuration state in Git repository
# option 1
flux install # install and upgrade
flux install \
--namespace=flux-system \
--network-policy=false \

# option 2
kubectl apply -f https://github.com/fluxcd/flux2/releases/latest/download/install.yaml
kustomize build https://github.com/fluxcd/flux2/manifests/install?ref=main | kubectl apply -f- # Upgrade

# Register Git repositories and reconcile them on your cluster:
flux create source git podinfo \
  --url=https://github.com/stefanprodan/podinfo \
  --tag-semver=">=4.0.0" \

flux create kustomization podinfo-default \
  --source=podinfo \
  --path="./kustomize" \
  --prune=true \
  --validation=client \
  --interval=10m \
  --health-check="Deployment/podinfo.default" \

# Register Helm repositories and create Helm releases:
flux create source helm bitnami \
  --interval=1h \

flux create helmrelease nginx \
  --interval=1h \
  --release-name=nginx-ingress-controller \
  --target-namespace=kube-system \
  --source=HelmRepository/bitnami \
  --chart=nginx-ingress-controller \


flux uninstall --namespace=flux-system
