Kubernetes/Container Runtimes OCI

From Ever changing code

< Kubernetes

Overview


CRI Container Runtime Interface

Introduced in K8s in 2016, uses gRPC to expose the interface, can talk to different runtimes through the same API

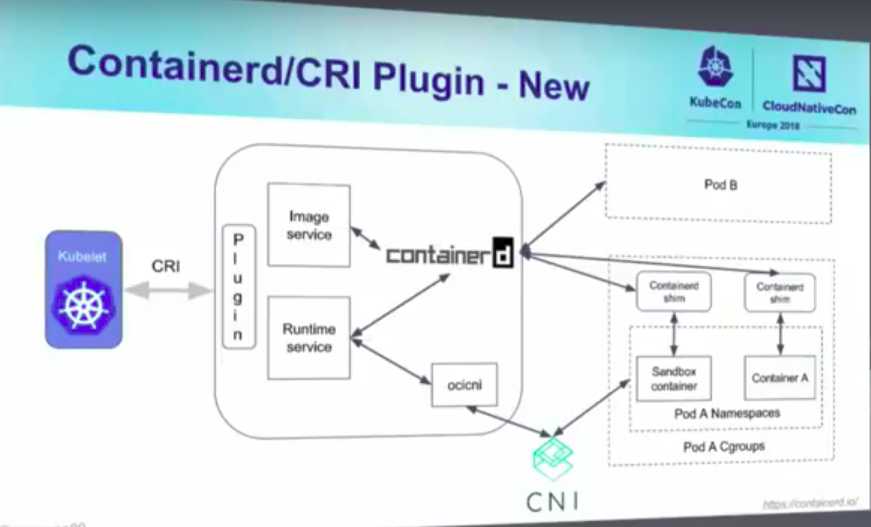

containerd



Running in Kubernetes, execute on every node. You point kubelet to unix socket, that listens for gRPC/CRI calls.

systemctl start containerd
kubelet --containre-runtime=remote --runtime-request-timeout=15m \
        --containre-runtime-endpoint=unix:///run/containerd/containerd.sock

# Service unit
[Service]
Environment="KUBELET_EXTRA_ARGS=--containre-runtime=remote --runtime-request-timeout=15m
--containre-runtime-endpoint=unix:///run/containerd/containerd.sock"

Worth to note:

  • when you restart containerd daemon all your containers also get restarted

Resources

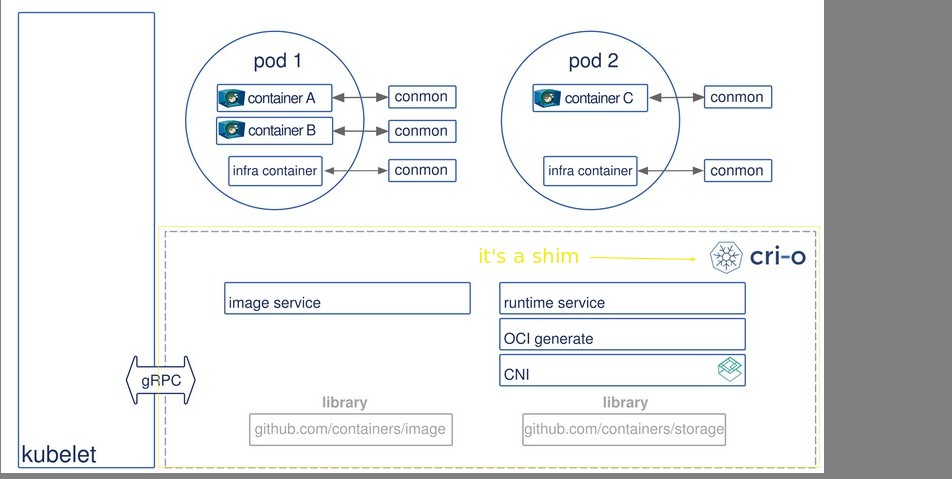

CRI-O



Start it up, by pointing to a socket that listens for gRPC/CRI calls.

systemctl start crio
kubelet --container-runtime=remote --runtime-request-timeout=15m \
        --container-runtime-endpoint /var/run/crio/crio.sock ...

Worth to note:

  • restarting the cri-o daemon won't cause container restart
