What is JSON

JSON (JavaScript Object Notation) is a lightweight data-interchange format. It is easy for humans to read and write. It is easy for machines to parse and generate. JSON is built on two structures:

A collection of name/value pairs. In various languages, this is realized as an object, record, struct, dictionary, hash table, keyed list, or associative array.
An ordered list of values. In most languages, this is realized as an array, vector, list, or sequence.

An object: is an unordered set of name/value pairs. An object begins with { (left brace) and ends with } (right brace). Each name is followed by : (colon) and the name/value pairs are separated by , (comma).
An array: is an ordered collection of values. An array begins with [ (left bracket) and ends with ] (right bracket). Values are separated by , (comma).
A value: can be a string in double quotes, or a number, or true or false or null, or an object or an array. These structures can be nested.
A string: is a sequence of zero or more Unicode characters, wrapped in double quotes, using backslash escapes. A character is represented as a single character string. A string is very much like a C or Java string.
A number: is very much like a C or Java number, except that the octal and hexadecimal formats are not used.

Interactive tools

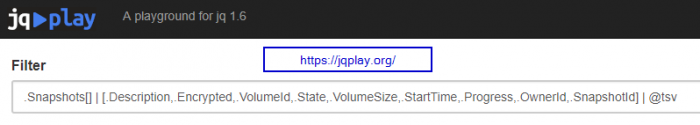

jqplay online

Online jq playground.

Jiq

Install Jiq

Install jq
Install Golang <1.7

Export environment variables eg. to .bashrc or .profile files.

export GOPATH=/home/ubuntu/.local/go
export PATH="$PATH:$HOME/.local/go"

Install jiq

go get github.com/fiatjaf/jiq/cmd/jiq #required sudo in Ubuntu 18.04 WSL
export PATH=$PATH:~/go/bin            #location where go-golang Ubuntu package installs go-lang binaries

jmespath.terminal

This is jmespath.terminal git project without latest activity but still works.

jq

Turn JSON into CSV

aws ec2 describe-snapshots --owner-ids 777781152222 --region us-east-1 --profile prod > prod_snapshots.json
cat prod_snapshots.json \
  | jq -r '.Snapshots[] | [.Description,.Encrypted,.VolumeId,.State,.VolumeSize,.StartTime,.Progress,.OwnerId,.SnapshotId] | @csv' \
  > prod_snapshots.csv
# by using filter '.Snapshots[]' you select "Snapshots" array every object, then
# create an array with [.key1,.key2] as array is required data structure to turn into CSV
# by default double quote will be escaped ' \" ' using '-r' prevents doing it making easier to open in Excel.

Json blob

{
    "Snapshots": [
        {
            "Description": "Copied for DestinationAmi ami-85921111 from SourceAmi ami-e3045222 for SourceSnapshot snap-0ebc77af111b09222. Task created on 1,487,109,468,219.",
            "Encrypted": false,
            "VolumeId": "vol-ffffffff",
            "State": "completed",
            "VolumeSize": 8,
            "StartTime": "2017-02-14T21:57:52.000Z",
            "Progress": "100%",
            "OwnerId": "3335812595337",
            "SnapshotId": "snap-58862222"
        },
        {
            "Description": "Copied for DestinationAmi ami-ccc875a8 from SourceAmi ami-cfda333 for SourceSnapshot snap-71347333. Task created on 1,485,867,366,917.",
            "Encrypted": false,
            "VolumeId": "vol-ffffffff",
            "State": "completed",
            "VolumeSize": 60,
            "StartTime": "2017-01-31T12:56:11.000Z",
            "Progress": "100%",
            "OwnerId": "222557238111",
            "SnapshotId": "snap-2314333"
        }
    ]
}

Display only Keys that mach value

Extract AWS volumes

aws ec2 describe-volumes --region us-east-1 --profile prod > prod_volumes.json
cat prod_volumes.json \
  | cat ftr_volumes_all.json \
  | jq --raw-output '.Volumes[] | [ (.Tags[]? | select(.Key=="Name").Value, select(.Key=="Backup").Value), .VolumeId, .State, .SnapshotId, .Attachments[].InstanceId //"notAttached", .CreateTime, .Size ] | @csv' \
  > ftr_volumes_all.csv \
  > prod_volumes.csv

.Tags[]? means that the list/object is optional, prevents jq: error - Cannot iterate over null (null) error
(.Tags[]? | select(.Key=="Name").Value, select(.Key=="Backup").Value) taking expression in brackets groups multiple filters into one, so it is not affecting next filter. Remember , coma feeds date through next filter here it's .VolumeId. This produces first 2 items on in the list, see below in results.
.Attachments[].InstanceId //"notAttached" 2 forward slashes set default value

Blob and results

Blob

Result

{
    "Volumes": [
        {
            "AvailabilityZone": "us-east-1b",
            "Attachments": [],
            "Tags": [
                {
                    "Value": "Comms Scheduler",
                    "Key": "Name"
                }
            ],
            "Encrypted": false,
            "VolumeType": "gp2",
            "VolumeId": "vol-1111cd2b12e622222",
            "State": "available",
            "Iops": 300,
            "SnapshotId": "snap-1111810031fa22222",
            "CreateTime": "2018-06-20T15:29:32.333Z",
            "Size": 100
        },
        {
            "AvailabilityZone": "us-east-1b",
            "Attachments": [
                {
                    "AttachTime": "2018-06-27T11:13:30.000Z",
                    "InstanceId": "i-44441a50fc245555",
                    "VolumeId": "vol-77770ff240e67777",
                    "State": "attached",
                    "DeleteOnTermination": true,
                    "Device": "/dev/sda1"
                }
            ],
            "Tags": [
                {
                    "Value": "apache",
                    "Key": "Name"
                },
                {
                    "Value": "False",
                    "Key": "Backup"
                }
            ],
            "Encrypted": true,
            "VolumeType": "gp2",
            "VolumeId": "vol-123123ff240e62222",
            "State": "in-use",
            "KmsKeyId": "arn:aws:kms:us-west-1:0123481158111:key/40222222-4455-7777-8888-c06f27d59999",
            "SnapshotId": "snap-999947cb7448d8888",
            "Iops": 100,
            "CreateTime": "2018-06-27T11:13:30.582Z",
            "Size": 8
        }
    ]
}

[
  "Comms Scheduler",
  "backupFalse",
  "vol-1111cd2b12e622222",
  "available",
  "snap-1111810031fa22222",
  "notAttached",
  "2018-06-20T15:29:32.333Z",
  100
]
[
  "apache",
  "backupFalse",
  "False",
  "vol-123123ff240e62222",
  "in-use",
  "snap-999947cb7448d8888",
  "i-44441a50fc245555",
  "2018-06-27T11:13:30.582Z",
  8
]

Filtered list of instance name, type, virtualization type and instance id

At the beginning my simple convention for Json is [] is an array and {} is an object.

Get an JSON output of all instances in your AWS accounty

aws ec2 describe-instances --output json | jiq #pipe into jiq

#jiq's expressions line
Filter]> .Reservations[].Instances[] | {_name: .Tags[], _id: .InstanceId, _type: .InstanceType, _virtType: .Hypervisor }

.Reservations[].Instances[] returns all data that we need, therefore we pipe into new object { _key1: XXX, _key2: YYY }. Actually, the keys fields we define now, as: _name, _id, _id, _type.

Next, let's select only Tags we are interested in, from a list(object). Therefore, we pipe Tags via select function. Where the Tag name is Name and we want get .Value field.

{name: .Tags[] | select(.Key=="Name").Value

Full filter command:

[Filter]> .Reservations[].Instances[] | {name: .Tags[] | select(.Key=="Name").Value, id: .InstanceId, type: .InstanceType, virt_type: .Hypervisor }

{
  "_name": "box-2.prod1.example.com",
  "_id": "i-ecccc666",
  "_type": "c4.2xlarge",
  "_virt_type": "xen"
}
{
  "_name": "db-2.prod1.example.com",
  "_id": "i-0aaaaae989a68b6e6",
  "_type": "m4.large",
  "_virt_type": "xen"
}

Now, we want to display only records, that match our instance name using REGEX expression .*box.*

{_name: .Tags[] | select(.Key=="Name").Value | match(".*box.*")

[Filter]> .Reservations[].Instances[] | {_name: .Tags[] | select(.Key=="Name").Value | match(".*box.*") , _id: .InstanceId, _type: .InstanceType, _virt_type: .Hypervisor }

{
  "_name": {
    "offset": 0,
    "length": 25,
    "string": "box-2.prod1.example.com",
    "captures": []
  },
  "_id": "i-0c26072b64b6404dc",
  "_type": "m4.large",
  "_virt_type": "xen"
}
{
  "_name": {
    "offset": 0,
    "length": 24,
    "string": "db-2.prod1.example.com",
    "captures": []
  },
  "_id": "i-0a6f8fe989a68b6e6",
  "_type": "m4.large",
  "_virt_type": "xen"
}

The output contains now extra info. Butm but we are only interested in string field

{_name: .Tags[] | select(.Key=="Name").Value | match(".*box.*").string

Let's sort out the output by _id field. Note, only arrays [] aka lists can be sorted using sort_by</function>. That's why we need to wrap our object {} into brackets [].

[Filter]> [.Reservations[].Instances[] | {_name: .Tags[] | select(.Key=="Name").Value | match(".*box.*").string, _id: .InstanceId, _type: .InstanceType, _virt_type: .Hypervisor }] | sort_by(._id)

Real use:

$ aws ec2 describe-instances --filters "Name=tag:Name,Values=*mft*" "Name=instance-state-code,Values=16" | jq -r '[.Reservations[].Instances[] | {_name: .Tags[] | select(.Key=="Name").Value | match(".*box.*").string, _id: .InstanceId, _type: .InstanceType, _virt_type: .Hypervisor }] | sort_by(._id)'

Awscli queries

$ aws ec2 describe-instances \
  --output table \
  --query 'Reservations[].Instances[].[Tags[?Key==`Name`] | [0].Value,InstanceId,InstanceType]'

And we get a nicely formatted table:
-----------------------------------------------
|              DescribeInstances              |
+----------------+--------------+-------------+
|  xxxxxxxxxx    |  i-a0169xxx  |  r3.large   |
|  yyyyyyyyyy    |  i-11a46xxx  |  m3.large   |
|  zzzzzzzzzzzzzz|  i-07c4axxx  |  t2.medium  |
+----------------+--------------+-------------+

References

jq and json training
Jq manual Include functions
jqplay Jq playground online querying tool
Processing HTTP to HTTP with bash, curl and jq

Json queries with JMEPath and jq
