Installation

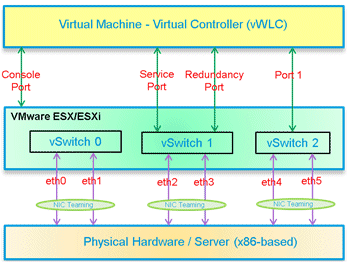

Virtual Controller Virtual Interfaces
- Management Interface
- Virtual Interface
- Dynamic Interface
- AP Manager Interface

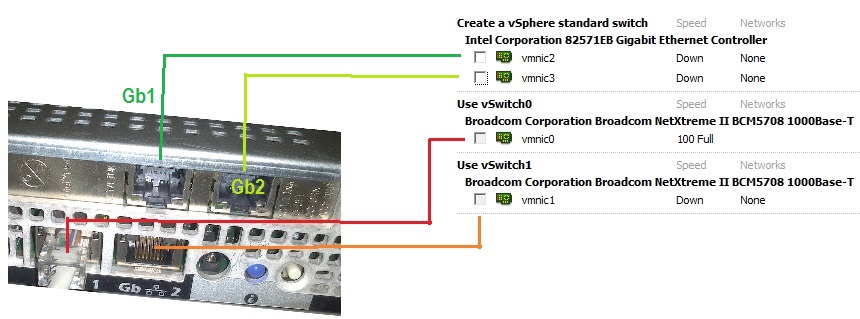

This is port mapping between ESXi 5.5 and Dell Power Edge 1950 Ethernet ports. Please notice this server has 2 embedded ports and 2 ports on duo-ethernet card.
This section provides a sample configuration of the Cisco Catalyst interface connection to the ESXi server for the virtual switch as trunk interface. The management interface can be connected to an access port on the switch.
Following configuratin is on Cisco 2950 switch
interface FastEthernet0/1 description ->pe1950 vmnic0 esxi(vWLC Service Port) switchport access vlan 10 switchport mode access ! interface FastEthernet0/2 description ->pe1950 vmnic2 esxi trunk(vWLC Data Port) switchport trunk allowed vlan 10,1002-1005 switchport mode trunk
Power Edge 1950 rear
+-----------------------------------+---
| |e0| |e1| |Dual-Ethernet-card
|-----------------------------/-----|
| |gb1| |gb2| / |Build-in ethernet ports
+-------/------------------ /-------+---
/ ______________/
/ /
+----/---- /------------------------+
|fa0/1|fa0/2|fa0/3|fa0/4|fa0/5 |Cisco 2950 switch
+-----------------------------------+
vWLC software
You will find a related software on Cisco Virtual Wireless Controller software website.
| Cisco Wireless Lan Controller | Cisco image *.aes | Virtual Guest OS *.ova | Comments |
|---|---|---|---|
| Cisco Wireless LAN Virtual Controller | Release: 7.6.100.0 Release Date: 20/Dec/2013 File Name: AIR-CTVM-K9-7-6-100-0.aes Size: 141.33 MB (148190536 bytes) MD5 Checksum: 39820e3d58b90be8fb54ec7a247991a9 |
Release: 7.6.100.0 Release Date: 20/Dec/2013 File Name: AIR-CTVM-7-6-100-0.ova Size: 177.00 MB (185600000 bytes) MD5 Checksum: 6285134046a869f71be1e24aaf6ceee5 |
none |
| Cisco 2500 Series Wireless Controllers Release 7.6 Software | Release: 7.6.110.0 Release Date: 07/Mar/2014 File Name: AIR-CT2500-K9-7-6-110-0.aes Size: 138.70 MB (145434684 bytes) MD5 Checksum: 38f8543c4a565e4551de069ff338a8f3 |
n/a | none |
| Cisco 2500 Series Wireless Controllers Release 7.6 Software | Release: 7.6.100.0 Release Date: 20/Dec/2013 File Name: AIR-CT2500-K9-7-6-100-0.aes Size: 138.69 MB (145423124 bytes) MD5 Checksum: f344a32b4d4ccd4195c74427b96946ec |
n/a | failed md5 check with 0dc58760aacc68d268c527292f98ce67 |
| Cisco Wireless LAN Virtual Controller. | Release: 7.5.102.0 Release Date: 31/Jul/2013 File Name: AIR-CTVM-K9-7-5-102-0.aes Size: 129.69 MB (135993832 bytes) MD5 Checksum: 3fbfde6414c9ec794828b3cfecbcfc42 |
Release: 7.5.102.0 Release Date: 31/Jul/2013 File Name: AIR-CTVM-7-5-102-0.ova Size: 165.37 MB (173404160 bytes) MD5 Checksum: c87a69e659ea9348d49a23d038d6c8d7 |
this *.aes is currently in use, it supports AP 3502P & AP 1602E |
| Cisco Wireless LAN Virtual Controller | Release: 7.3.101.0 Release Date: 30/Aug/2012 File Name: AIR-CTVM-K9-7-3-101-0.aes Size: 115.16 MB (120754080 bytes) MD5 Checksum: 2b396e36f76933065b719010e6dfeab0 |
Release: 7.3.101.0 Release Date: 30/Aug/2012 File Name: AIR-CTVM-7-3-101-0.ova Size: 150.67 MB (157992960 bytes) MD5 Checksum: 3bf3067974e5e3507cb485b2dd627c81 |
It is the first vWLC image, does not support AP 1602. This release has been deferred due to: 'CSCul68057 CF driver change for 5508/WiSM2/2504' |
